Ok, I lost my entire UV-map for one of my models after merging, by accident. Or it was lost after enveloping processes I dunno. Anyway it lost the UV map now and I REALLY don't wanna slog thru to remake it. I can't undo back to normal.
Inside my model is something labeled "Scene_Material (Scene_Root)" and inside are some stuff called "Phong". Is that a sign of hope?
If not...is it possible to transfer UV projections between models...?
UV map missing after envelopes/merging
Moderator: Moderators
- CodaRez
- Field Commander

- Posts: 940
- Joined: Mon May 25, 2009 6:49 am
- Projects :: I would like one.....
- Location: Ride around the world! And I won't give you anything :P
- ANDEWEGET
- Ancient Force

- Posts: 1266
- Joined: Tue Apr 01, 2008 8:42 am
- Location: Germany
- Contact:
Re: UV map missing after envelopes/merging
There is a button called "merge Materials/UV" or something like that when you merge objects, make sure you use that one the next time.
- DarthD.U.C.K.
- Master of the Force

- Posts: 6027
- Joined: Wed Sep 27, 2006 11:05 am
- Location: Duckburg, Germany
Re: UV map missing after envelopes/merging
"phong" is the standard shader of the "Scene_Material" that is automatically applied to all objects, so no, thats no sign of hope
you can transfer an UV from one model to a 100% similiar one by opening the texture editor, selecting the model with the proper UV and clicking edit>copy UVs, then select the other model and click edit>paste UVs (both with either all or none vertexes selected)
with "GATOR" you are supposed to be able to transfer UVs and more between two pretty similiar models, but in case the UVs are split up in several clusters/texture projections it wont work
you can transfer an UV from one model to a 100% similiar one by opening the texture editor, selecting the model with the proper UV and clicking edit>copy UVs, then select the other model and click edit>paste UVs (both with either all or none vertexes selected)
with "GATOR" you are supposed to be able to transfer UVs and more between two pretty similiar models, but in case the UVs are split up in several clusters/texture projections it wont work
-
VF501
- Lieutenant Colonel

- Posts: 539
- Joined: Fri Jun 08, 2007 1:18 am
- Projects :: Various Stuff- Weapon models. UDK Stuff
- xbox live or psn: Vintage Tagious
- Location: Terra Firma, Sol System; Milky Way
Re: UV map missing after envelopes/merging

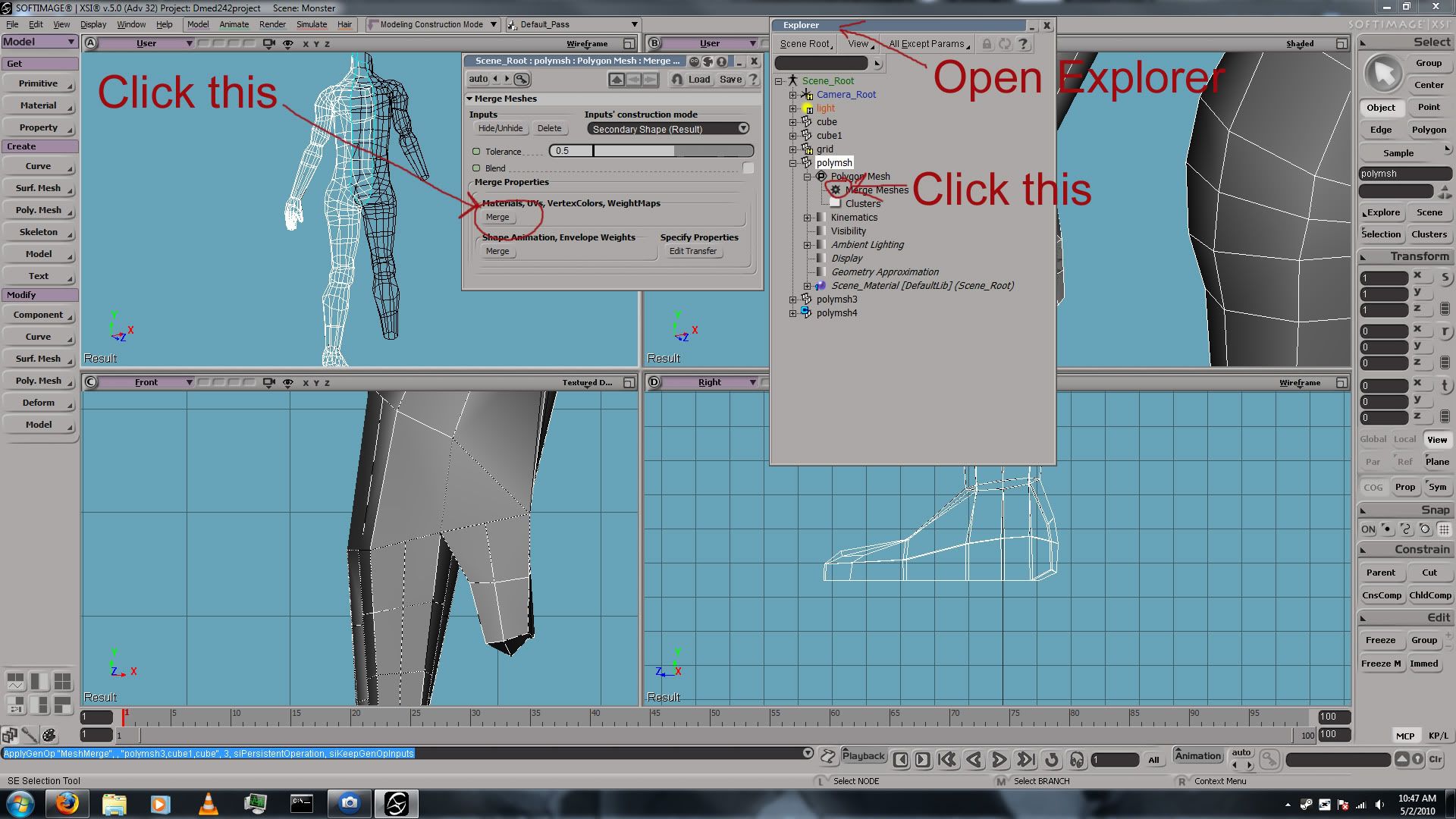

1000 words
Hidden/Spoiler:
